Opel Corsa Owners Manual: Child restraint installation locations

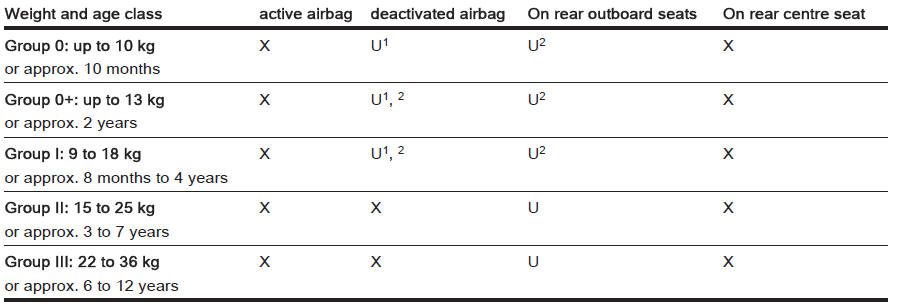

Permissible options for fitting a child restraint system
Permissible options for fitting a child restraint system

1 = Only if front passenger seat airbag systems are deactivated. If the child restraint system is being secured using a threepoint seat belt, move seat height adjustment to uppermost position and ensure that vehicle seat belt runs forwards from the upper anchorage point.

2 = Seat available with ISOFIX and Top-tether mounting brackets (Not available on the front passenger seat in the Corsa VXR).

U = Universal suitability in conjunction with three-point seat belt.

X = No child restraint system permitted in this weight class.

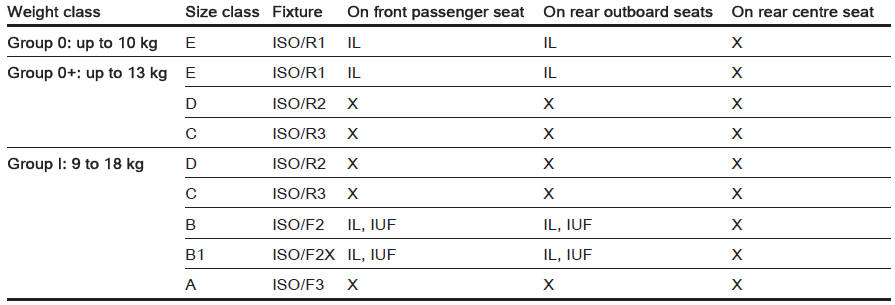

Permissible options for fitting an ISOFIX child restraint system
Permissible options for fitting an ISOFIX child restraint system

IL = Suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.

The ISOFIX restraint system must be approved for the specific vehicle type.

IUF = Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this mass group.

X = No ISOFIX child restraint system approved in this weight class.

ISOFIX size class and seat device

A Ц ISO/F3 = Forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.

B Ц ISO/F2 = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.

B1 Ц ISO/F2X = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.

C Ц ISO/R3 = Rear-facing child restraint system for children of maximum size in the weight class up to 13 kg.

D Ц ISO/R2 = Rear-facing child restraint system for smaller children in the weight class up to 13 kg.

E Ц ISO/R1 = Rear-facing child restraint system for young children in the weight class up to 13 kg.
