Opel Corsa B 1993–2000 Service and Repair Manual: Steering damper - removal and refitting

Removal

1. When fitted, the steering damper is removed as follows.

2. Remove the securing nut at the moving end of the damper (see illustration). Recover the washer.

Suspension and steering

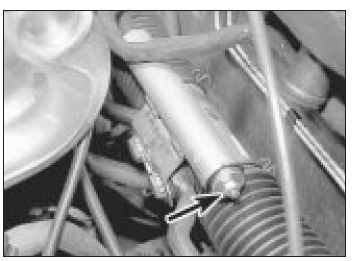

Steering damper securing nut (arrowed)

3. Unbolt the damper from the bracket at the pinion end and remove It.

Refitting

4. When refitting, secure the pinion end of the damper first and tighten its mounting bolt to the specified torque.

5. Tighten the securing nut at the moving end of the damper to obtain a dimension A as shown (see illustration).

Suspension and steering

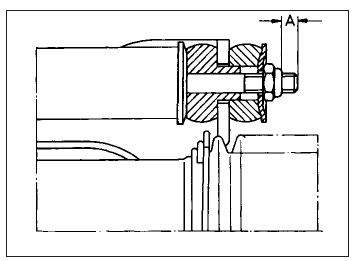

Steering damper securing nut setting

A = 6 mm
