Opel Corsa B 1993–2000 Service and Repair Manual: Clock - removal and refitting

Removal

1. Disconnect the battery earth lead.

2. Carefully pull the clock from its location.

Disconnect the supply and illumination leads from the clock and remove it (see illustration).

Body electrical system

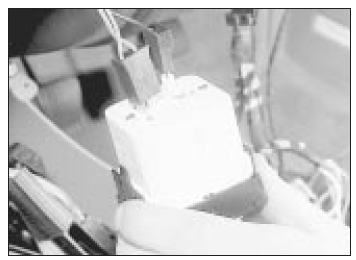

Removing the clock

Refitting

3. Refit in the reverse order to removal.

Cigarette lighter - removal and refitting

Removal

1. Disconnect the battery earth lead.

2. Extract the heater element from the lighter socket.

3. Carefully prise the lighter socket out of the illuminating ring. Unplug the socket and remove it.

Refitting

4. Refit in the reverse order to removal. When inserting the socket into the illuminating ring, make sure that the ring lugs pass over a smooth part of the socket; twist the socket clockwise when home to engage the lugs.
