Opel Corsa B 1993–2000 Service and Repair Manual: Windscreen wiper motor and linkage - removal and refitting

Removal

1. Remove the windscreen wiper arms, as described in the previous Section.

2. Disconnect the battery earth lead.

3. Remove the four screws and take off both halves of the wind deflector panel.

4. Remove the clamp nuts from both wiper spindles (see illustration).

Body electrical system

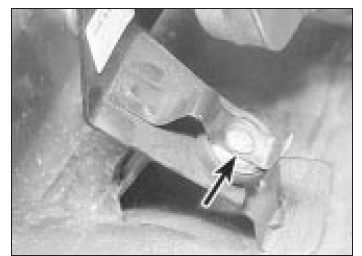

Wiper spindle clamp nut (arrowed)

5. Free the bulkhead rubber seal, remove the single securing screw and take off the water deflector.

6. Release the retainer and disconnect the electrical multi-plug from the motor (see illustration).

Body electrical system

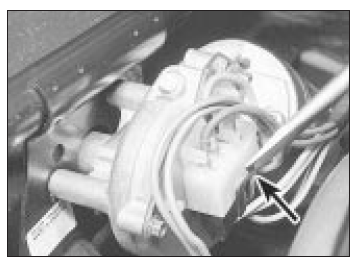

Releasing the wiper motor electrical plug

7. Undo the single securing screw and remove the motor and linkage (see illustration).

Body electrical system

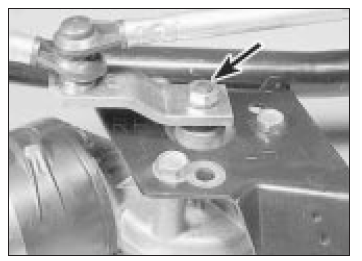

Wiper motor securing screw (arrowed)

8. The motor may be separated from the linkage by undoing the spindle nut. To remove the motor from its bracket, also remove the three securing screws (see illustrations).

Body electrical system

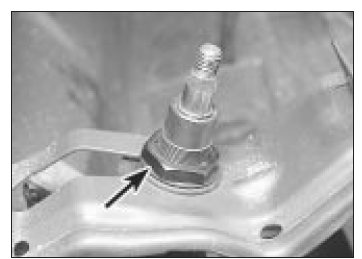

Wiper motor spindle nut (arrowed)

Body electrical system

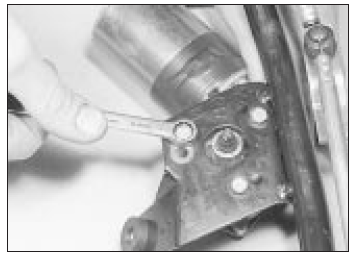

Undoing the wiper motor securing

Refitting

9. Refit in the reverse order to removal. Note that two sets of motor mounting holes are provided, to provide for different sweep and parking requirements for RHD and LHD cars (see illustration).

Body electrical system

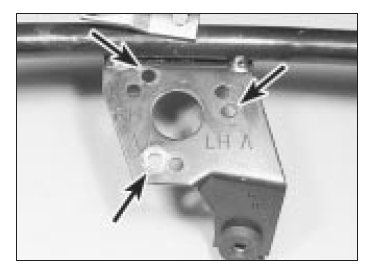

Removing the window-mounted motor

    Wiper blades and arms - removal and refitting
    Removal 1. To remove a wiper blade, lift the wiper arm away from the glass. Swivel the blade on the arm, depress the catch on the U-shaped retainer and slide the blade off the arm (see illustrat ...

    Rear window wiper motor - removal and refitting
    Removal Tailgate-mounted motor 1. Disconnect the battery earth lead. 2. Remove the wiper arm. 3. Remove the clamp nut from the wiper spindle. 4.Remove the tailgate inner trim panel. 5. Remove t ...
