Steering wheel adjustment

Unlock lever, adjust steering wheel,


Unlock lever, adjust steering wheel, then engage lever and ensure it is fully locked. Do not adjust steering wheel unless vehicle is stationary and steering wheel lock has been released.

Airbag system, Ignition
positions.

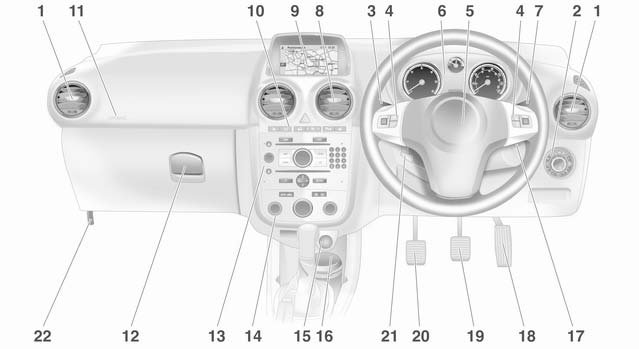

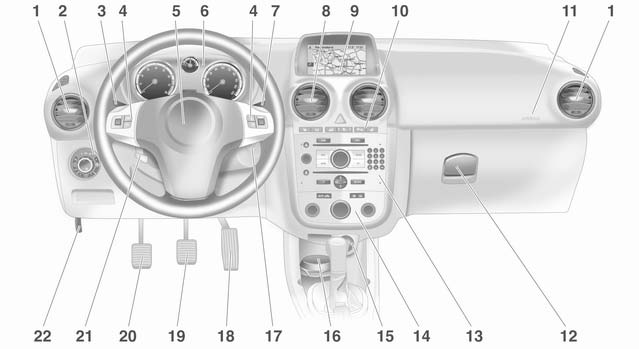

Instrument panel overview

1. Side air vents.


1. Side air vents.

2. Light switch.

3. Turn and lane-change
signals, headlight flash, low beam and high beam.

4. Remote control on
steering wheel.

5. Horn.

6. Instruments.

7. Windscreen wiper,
windscreen washer system.

8. Centre air vents.

9. Info-Display.

10. Left heated seat.

11. Front passenger airbag.

12. Glovebox.

13. Infotainment system.

14. Climate control system.

15. Cigarette lighter.

16. Ashtray.

17. Ignition switch with steering wheel lock.

18. Accelerator pedal.

19. Brake pedal.

20. Clutch pedal.

21. Steering wheel adjustment.

22. Bonnet release lever.

1. Side air vents.


1. Side air vents.

2. Light switch.

3. Turn and lane-change
signals, headlight flash, low beam and high beam.

4. Remote control on
steering wheel.

5. Horn.

6. Instruments.

7. Windscreen wiper,
windscreen washer system.

8. Centre air vents.

9. Info-Display.

10. Left heated seat.

11. Front passenger airbag.

12. Glovebox.

13. Infotainment system.

14. Climate control system.

15. Cigarette lighter.

16. Ashtray.

17. Ignition switch with steering wheel lock.

18. Accelerator pedal.

19. Brake pedal.

20. Clutch pedal.

21. Steering wheel adjustment.

22. Bonnet release lever.
