Opel Corsa Owners Manual: Control indicators in the instrument cluster, Turn signal, Seat belt reminder

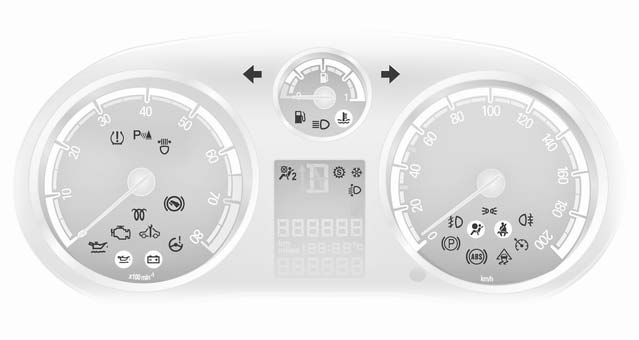

Control indicators in the instrument cluster

Control indicators in the instrument cluster
Control indicators in the instrument cluster

Turn signal

green. illuminates or flashes
green.

Illuminates

The control indicator illuminates briefly when the parking lights are switched.

Flashes

The control indicator flashes if a turn signal or the hazard warning flashers are activated.

Rapid flashing: failure of a turn signal light or associated fuse, failure of turn signal light on trailer.

Bulb replacement, Fuses, Turn signals.

Seat belt reminder

red. illuminates or flashes
red.

Illuminates

After the ignition is switched on until the seat belt is fastened.

Flashes

After starting off until the seat belt is fastened.

Fastening the seat belt.
