Opel Corsa B 1993–2000 Service and Repair Manual: OHC engines
Opel Corsa B 1993–2000 Service and Repair Manual / OHC engines
Specifications

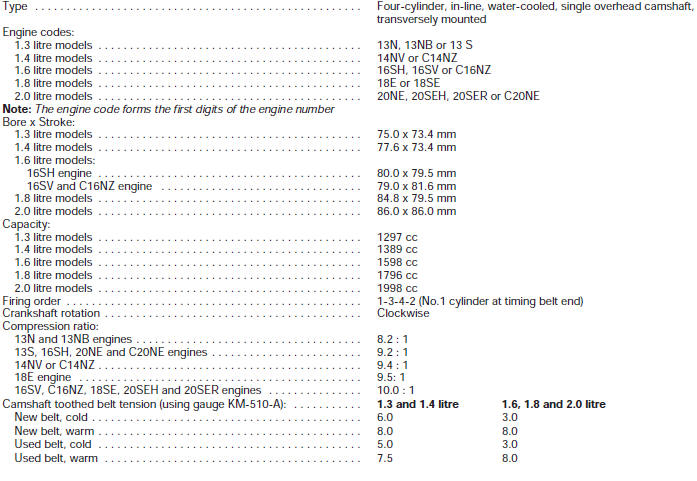

General

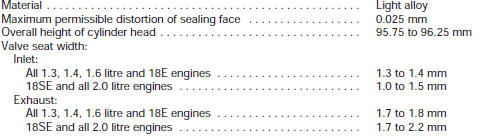

Cylinder head

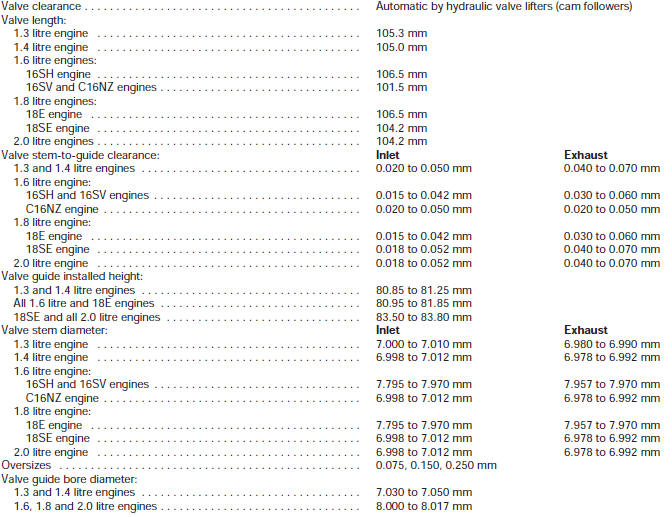

Valves and guides

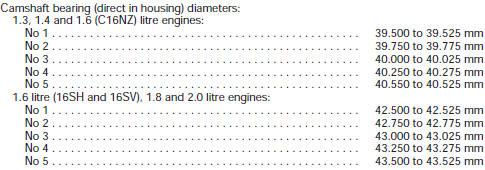

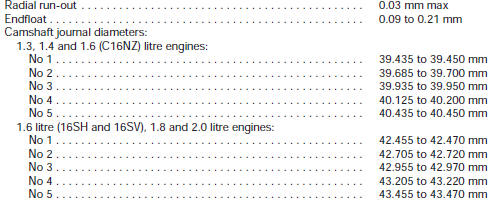

Camshaft
Piston rings

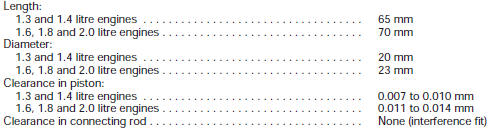

Gudgeon pins

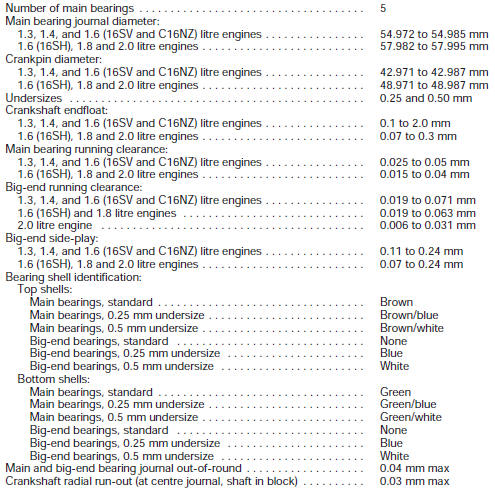

Crankshaft and bearings
Flywheel
Lubrication system

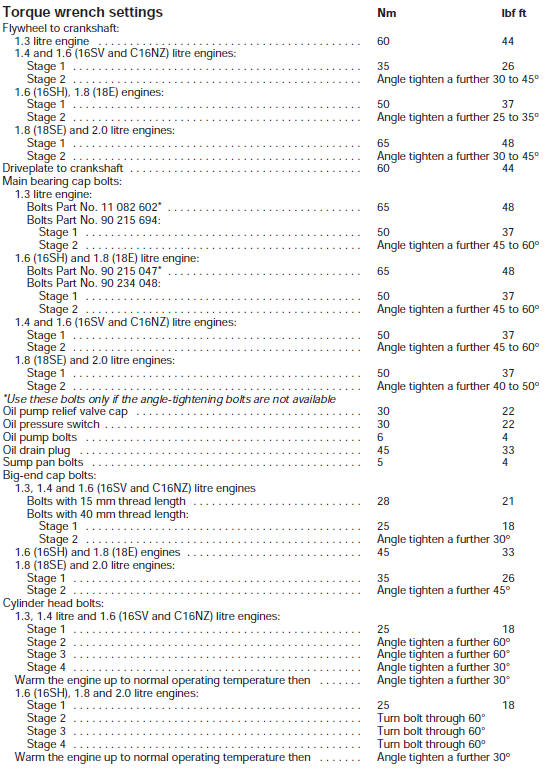

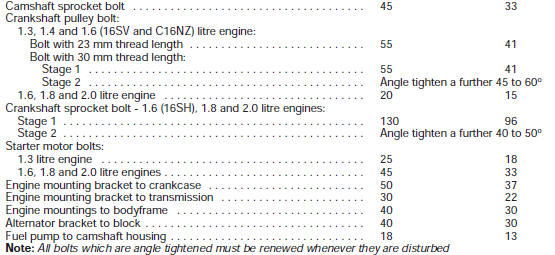

Torque wrench settings
Engine lubrication system -
general description
The engine lubrication system is quite
conventional. A gear type oil pump draws oil
up from the sump, via the suction pipe and
strainer, and pumps the oil under pressure in
the cartridge oil filte ...
General description
The engine is of four-cylinder, in-line
overhead camshaft type, mounted
transversely at the front of the car.
The crankcase is supported in five shell
type main bearings. Thrustwashers are
inco ...
