Opel Corsa B 1993–2000 Service and Repair Manual: Cylinder head - overhaul

1. Remove the manifold gaskets

2. Remove the camshafts, slackening the bearing cap nuts progressively until the valve spring pressure is released.

3. Remove the spark plugs.

4. Using a sucker or a magnet, remove the hydraulic tappet buckets from their bores (see illustration). If they are to be re-used, keep them in order so that they can be refitted to their original locations. To stop the oil draining out of them, store them in a bath of clean engine oil with the oil ring lowermost.

DOHC (16-valve) engine

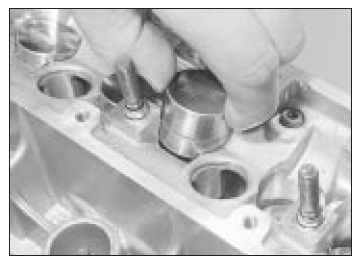

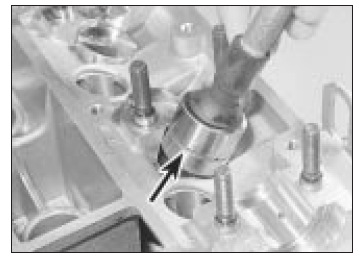

Removing a tappet. Note the oil ring (arrowed)

5. Prepare a box with 16 compartments to receive the valve components. Using a valve spring compressor and a piece of tube with two slots cut in it, compress a valve spring (see illustration). Extract the collets from the top of the valve stem using a pencil magnet or a magnetic screwdriver.

DOHC (16-valve) engine

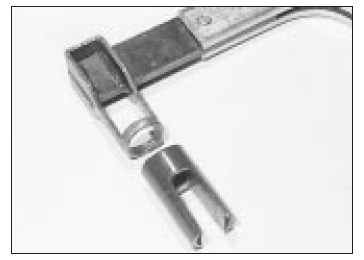

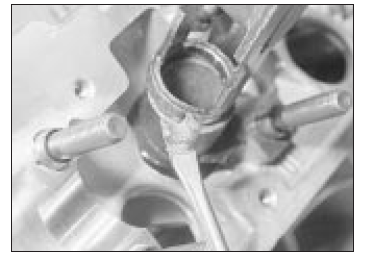

Detail of valve spring compressor head and tube

6. Carefully release the compressor and remove the valve, the spring upper seat and the spring. Pull off the valve stem oil seal with longnosed pliers and recover the valve spring seat. Place all the components in the appropriate compartment in the box (see illustrations).

DOHC (16-valve) engine

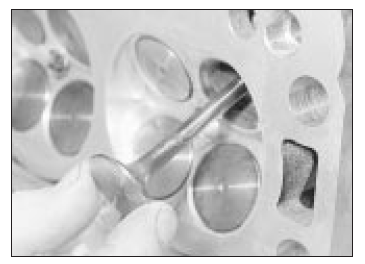

Remove the valve . . .

DOHC (16-valve) engine
. . . the spring upper seat . . .

DOHC (16-valve) engine

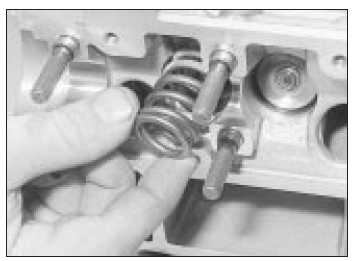

. . . the valve spring . . .

DOHC (16-valve) engine

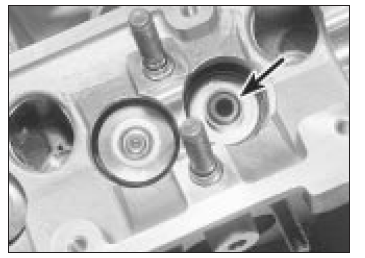

. . . the valve stem oil seal (arrowed) . . .

DOHC (16-valve) engine

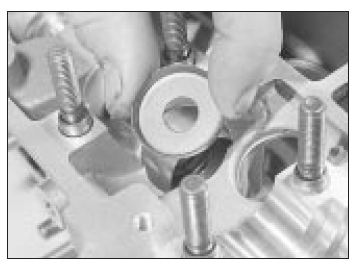

. . . and the valve spring seat

7. Repeat the operations on the other 15 valves.

8. Clean the combustion chambers and the gasket mating faces with a wooden or plastic scraper. Finish up with a rag or toothbrush and a solvent such as a proprietary carburettor cleaner.

9. Inspect the valves, springs and seats. Note however that the exhaust valves on these engines are filled with sodium to improve heat transfer. Sodium is a highly reactive metal which will ignite or explode spontaneously on contact with air or water. Valves containing sodium must not be disposed of in ordinary scrap.

10. Check the head gasket mating face for distortion using a straightedge and feeler blades. Check crosswise, lengthwise and diagonally. Warp limits are given in the Specifications.

11. Inspect the camshafts and their bearing surfaces and caps.

12. Commence reassembly by fitting a valve spring seat to its location. Fit a new valve stem oil seal to the top of the valve guide, using a deep socket or a piece of tube (see illustrations).

DOHC (16-valve) engine
Fit a valve stem oil seal into a socket or tube . . .

DOHC (16-valve) engine
. . . and press it home

13. Oil the valve stem and insert the valve into its guide, passing it gently through the stem oil seal to avoid damage. Fit the valve spring and upper seat. Compress the spring and fit the collets using a magnetic screwdriver this is a fiddly business. A dab of grease on each collet will keep them in position on the valve stem (see illustration).

DOHC (16-valve) engine

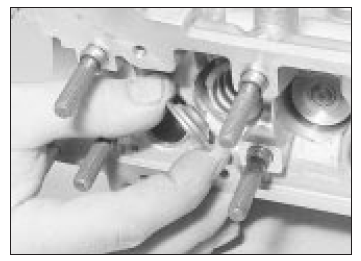

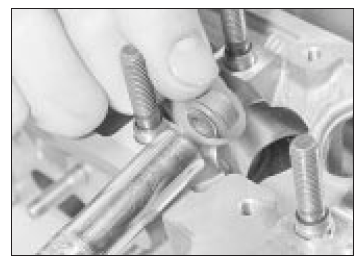

Fitting a valve collet

14. Carefully release the valve spring compressor. Apply a solid tube or piece of wood (eg a hammer handle) to the top of the valve and tap smartly with a hammer to settle the components.

15. Repeat the operations on the other valves.

16. Refit the tappets, with the oil ring lowermost, oiling them generously (see illustrations). If new camshafts are to be fitted, apply some of the assembly lubricant supplied with new camshafts to the top surfaces of the tappets.

DOHC (16-valve) engine

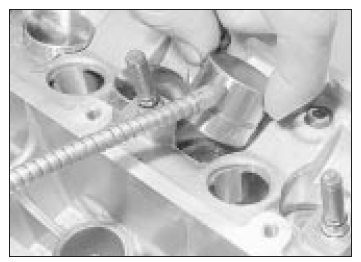

Oiling a tappet . . .

DOHC (16-valve) engine

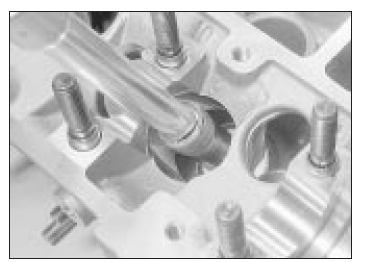

. . . and fitting it to its bore

17. Fit the camshafts and their oil seals.

18. The distributor and spark plugs may be refitted now, or if preferred left until after the head has been refitted.
