Opel Corsa B 1993–2000 Service and Repair Manual: Braking system

Specifications

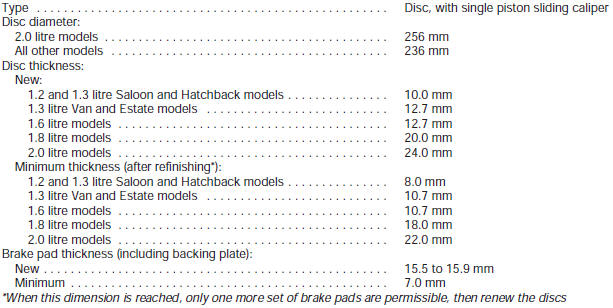

Front brakes

Front brakes

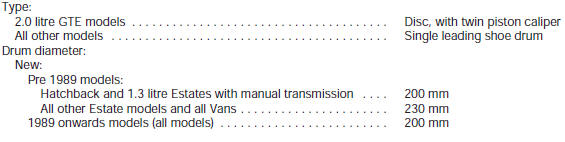

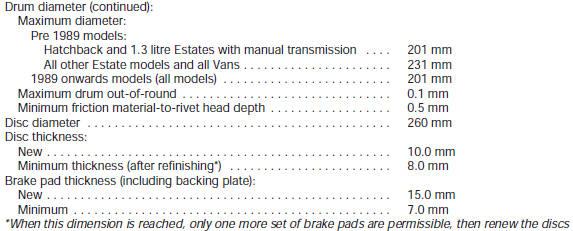

Rear brakes

Rear brakes

Rear brakes

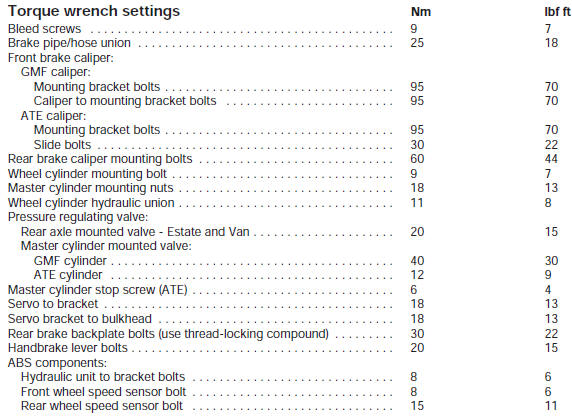

Torque wrench settings

Torque wrench settings

Ignition module (control unit) - removal and refitting
1.3 and 1.4 litre carburettor models 1. The ignition module is located in the distributor. 1.6 (16SH engine) carburettor models and 1.8 litre (18E engine) fuel injection models 2. The ignition mo ...

General description
The footbrake operates on all four wheels. On 2.0 litre GTE models disc brakes are fitted at both the front and rear, and on all other models, disc brakes are fitted at the front and self-adjust ...
