Opel Corsa B 1993–2000 Service and Repair Manual: Front anti-roll bar - removal and refitting

Removal

1. Raise and support the front of the vehicle.

2. Unbolt both ends of the anti-roll bar from the control arms (see illustration).

Suspension and steering

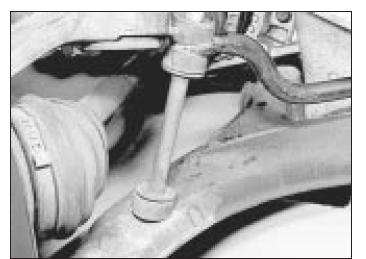

Front anti-roll bar end link

3. Unbolt the two brackets from the bulkhead.

4. Remove the anti-roll bar through one of the wheel arches, turning the steering wheel as necessary to obtain sufficient clearance.

5. Renew the rubber mountings as necessary.

Use a silicone-based lubricant on the bulkhead bracket bushes.

Refitting

6. When refitting, fasten the two brackets first; tightening their bolts to the specified torque.

7. Tighten the end mountings to achieve a dimension A, as shown using new self-locking nuts (see illustration).

Suspension and steering

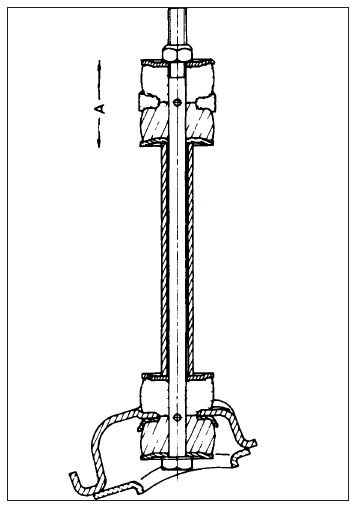

Anti-roll bar cushion link setting

A = 38mm

8. Lower the vehicle when the anti-roll bar is secured.

    Control arm bushes - renewal
    1. Remove the control arm. 2. Press out the front bush using suitable pieces of tube and a vice or a long bolt and washers. The bush should be removed from front to rear. 3. Fit the new front bus ...

    Rear hub bearings - adjustment
    Early (pre 1992) models 1. Chock the front wheels. engage a gear (or P) and release the handbrake. 2. Remove the wheel trim. If the roadwheels have no central hole, slacken the wheel bolts. 3. Ra ...
