Opel Corsa B 1993–2000 Service and Repair Manual: Body electrical system
Opel Corsa B 1993–2000 Service and Repair Manual / Body electrical system
Specifications
General

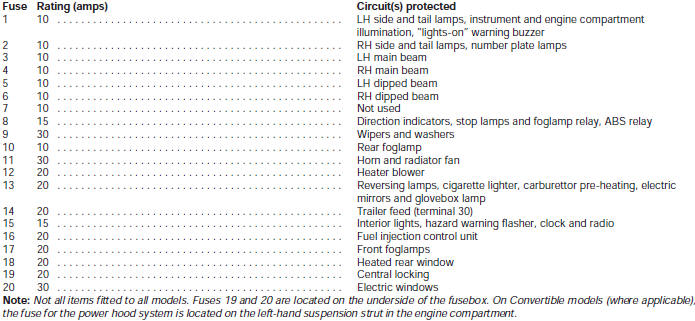

Fuses - early models

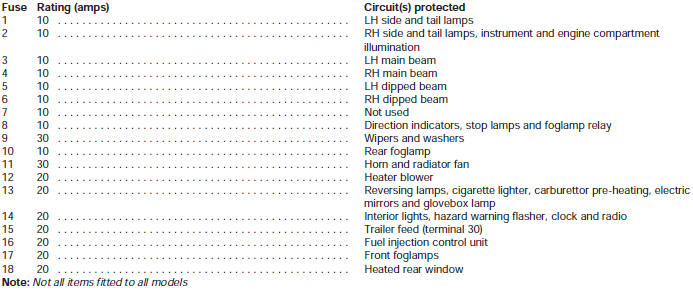

Fuses - early models

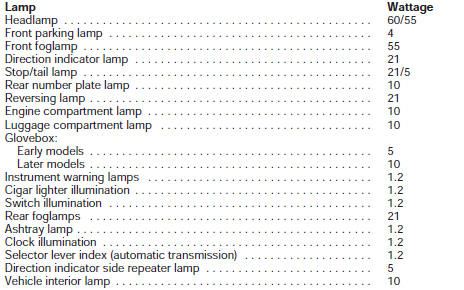

Bulbs
Seat belts - general
Warning: If the vehicle has been
involved in an accident in which
structural damage was
sustained all the seat belt
components must be renewed.
1. Inertia reel front seat belts are fitted to all
...
General information
Warning: Before carrying out
any work on the electrical
system, read through the
precautions given in Safety
First!
The electrical system is of the 12 volt
negative earth type. Power for the li ...
See also:
Opel Corsa B 1993–2000 Service and Repair Manual. Steering lock cylinder and
ignition switch wiring block
- removal and refitting
1. To renew either the ignition switch or the
steering lock cylinder, first remove the lower
half of the steering column shroud by undoing
and removing the securing screws.
Disconnect the batter ...
