Opel Corsa B 1993–2000 Service and Repair Manual: Wiper blades and arms - removal and refitting

Removal

1. To remove a wiper blade, lift the wiper arm away from the glass. Swivel the blade on the arm, depress the catch on the U-shaped retainer and slide the blade off the arm (see illustration).

Body electrical system

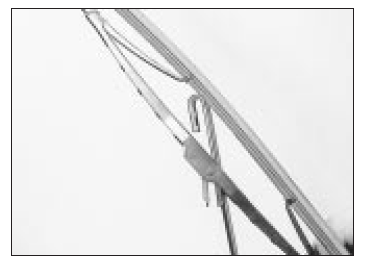

Removing a wiper blade from its arm

2. Before removing a wiper arm, make sure that the motor is in its parked position. Mark the position of the blade on the screen with sticky tape or wax crayon as a guide to refitting.

3. Lift up the cover and unscrew the arm retaining nut (see illustration).

4. Pull the arm off the splined shaft. If it has not been moved for a long time it will be tight: apply some penetrating fluid.

Body electrical system

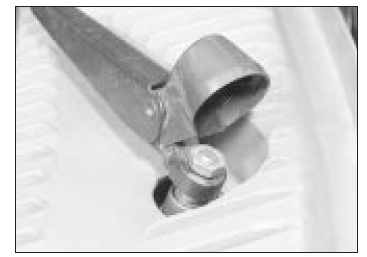

Wiper arm retaining nut

Refitting

5. Refit in the reverse order to removal.
