Opel Corsa B 1993–2000 Service and Repair Manual: OHV engine

Specifications

General

General

Valve clearances (warm)

Valve clearances (warm)

Cylinder head

Cylinder head

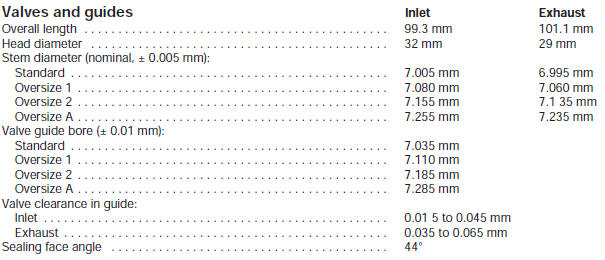

Valves and guides

Valves and guides

Camshaft

Camshaft

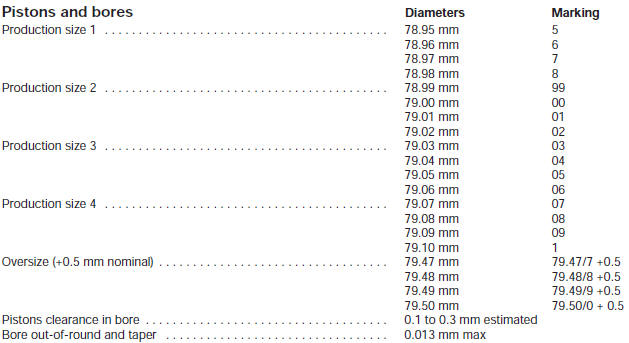

Pistons and bores

Pistons and bores

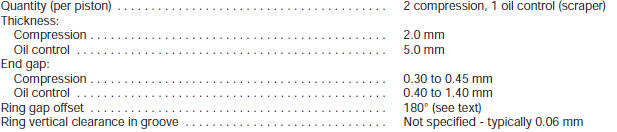

Piston rings

Piston rings

Gudgeon pins

Gudgeon pins

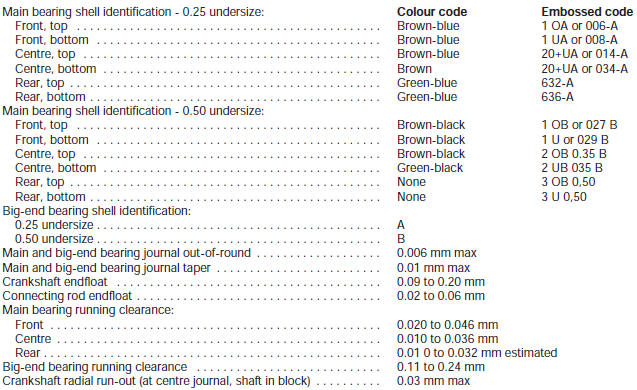

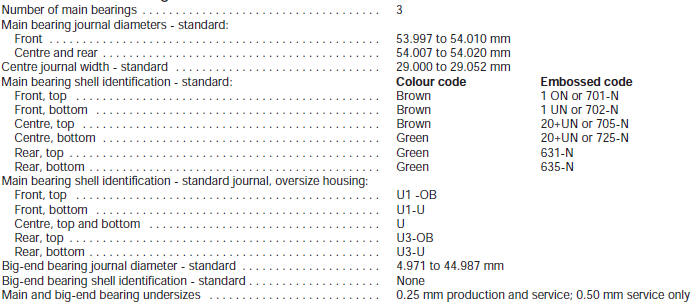

Crankshaft and bearings

Crankshaft and bearings

Crankshaft and bearings

Flywheel

Flywheel

Lubrication system

Lubrication system

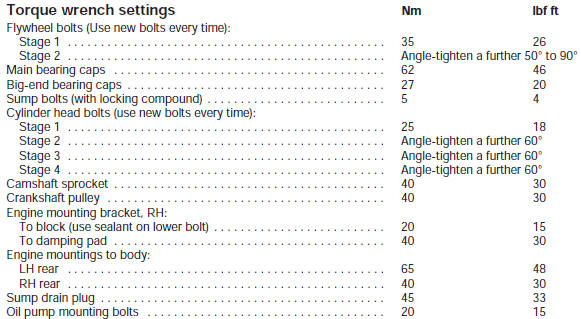

Torque wrench settings

Torque wrench settings

Every 36 000 miles
Automatic transmission fluid renewal 1. Allow the transmission to cool down before draining, as the fluid: can be very hot indeed. 2. Remove all the fluid pan screws except one which should be un ...

General description
The engine is of four-cylinder. in-line overhead valve type, mounted transversely at the front of the car. The crankshaft is supported in three shell type main bearings. Thrustwashers are incor ...
