Opel Corsa B 1993–2000 Service and Repair Manual: DOHC (16-valve) engine

Specifications

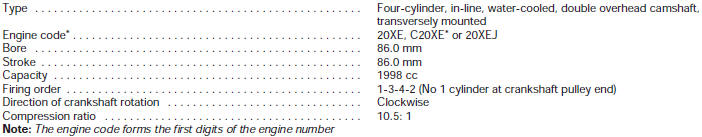

General

General

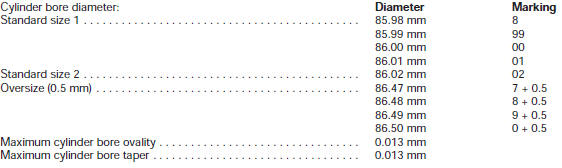

Cylinder block

Cylinder block

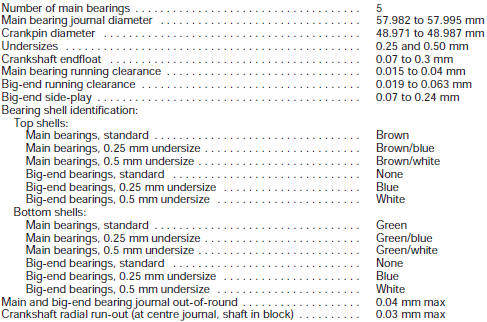

Crankshaft

Crankshaft

Pistons and piston rings

Pistons and piston rings

Gudgeon pins

Gudgeon pins

Cylinder head

Cylinder head

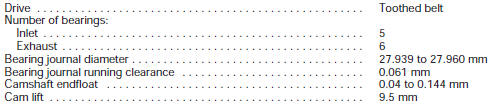

Camshafts

Camshafts

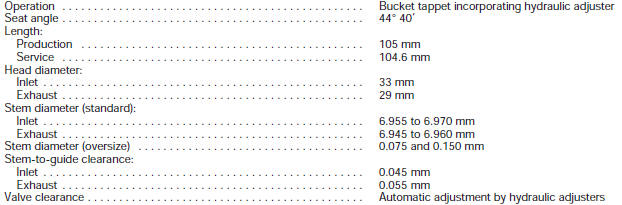

Valves

Valves

Valves

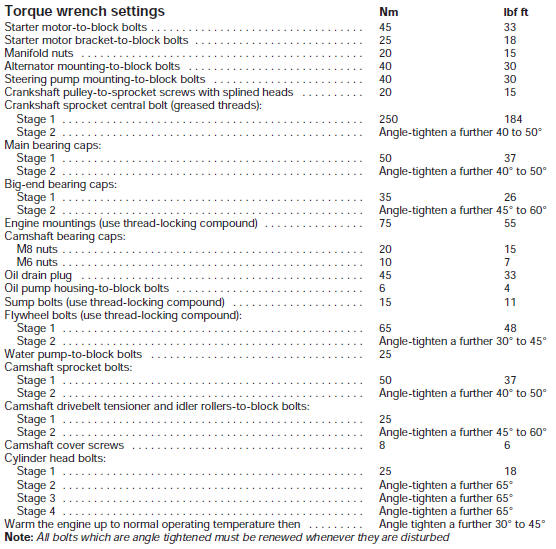

Torque wrench settings

Torque wrench settings

Engine - removal and refitting
Removal 1. The OHC engines may be removed either with or without the manual gearbox. To remove the engine alone, making allowances for differences in the attachment of components such as the carb ...

General description
The 2.0 litre 16-valve engine differs from the other 2 litre engines fitted to the range in the areas of the cylinder head, camshaft drive and associated components. The block, crankshaft and pist ...
