Opel Corsa B 1993–2000 Service and Repair Manual: Accelerator cable - removal, refitting and adjustment

Removal

1. Remove the air cleaner.

2. Extract the spring clip (when fitted) and disconnect the cable ball end from the carburettor throttle lever (see illustration).

Fuel and exhaust systems - carburettor models

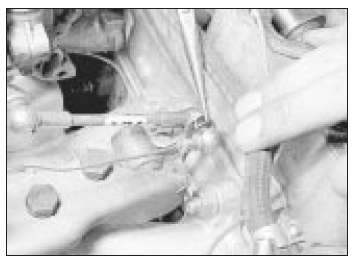

Accelerator cable ball and spring clip

3. Slide the cable outer bush out of the support bracket on the carburettor (see illustration).

Fuel and exhaust systems - carburettor models

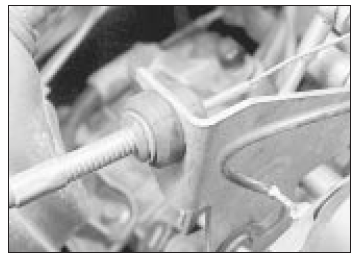

Accelerator cable bracket and bush

4. Inside the car, release the cable from the 'keyhole' fitting on the pedal by easing back the spring and prising the cable end out of the slot.

5. Release the grommet from the bulkhead and pull the cable into the engine compartment.

Refitting

6. Refit in the reverse order to removal.

Adjustment

7. Adjust the cable, by selecting the appropriate position of the spring clip behind the cable outer bush, to give a small amount of free play in the inner cable when the pedal is released. On 1.3 litre models with 13NB engine, make sure that with the choke control pushed fully home there is a small clearance between the fast idle adjuster screw and the choke cam plate (see illustration).

Fuel and exhaust systems - carburettor models

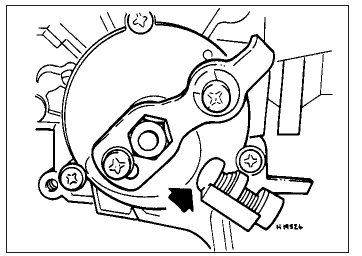

Accelerator cable adjustment to provide clearance at point arrowed

Accelerator pedal - removal and refitting

Removal

1. If necessary, remove the under-dash trim on the driver's side to improve access.

2. Disconnect the accelerator cable from the pedal.

3. Prise the spring clip off the end of the accelerator pivot. Remove the pedal, recovering any spacers, washers, bushes etc, and unhooking the pedal return spring.

Refitting

4. Refit in the reverse order to removal. Adjust the accelerator cable if necessary on completion.

    Fuel tank - removal and refitting
    Note: Refer to the warning note in Section 1 before proceeding. Removal 1. Disconnect the battery negative lead cap. Remove the fuel tank filler cap. 2. A drain plug is not provided and it will ...

    Choke cable - removal, refitting and adjustment
    Removal 1. Disconnect the battery earth lead. 2. Tap out the small pin which secures the choke control knob to the cable end fitting. Unscrew and remove the knob. 3. Undo the retaining ring or ...
