Opel Corsa B 1993–2000 Service and Repair Manual: Fuel and exhaust systems - carburettor models

Specifications

Fuel pump

Fuel pump

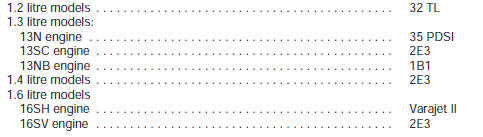

Carburettor application

Carburettor application

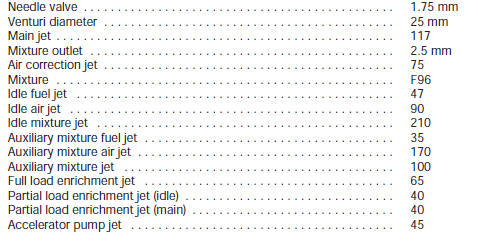

32TL Carburettor data - 12SC engine

32TL Carburettor data - 12SC engine

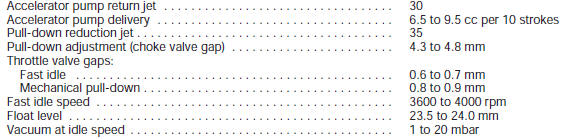

32TL Carburettor data - 12SC engine (Continued)

32TL Carburettor data - 12SC engine (Continued)

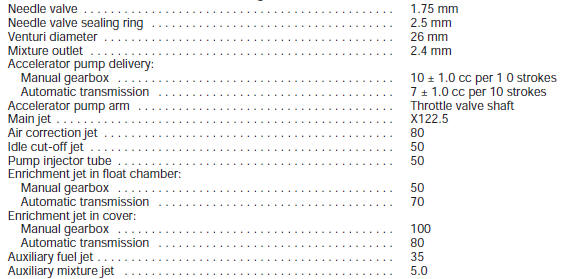

35 PDSI Carburettor data - 13N engine

35 PDSI Carburettor data - 13N engine

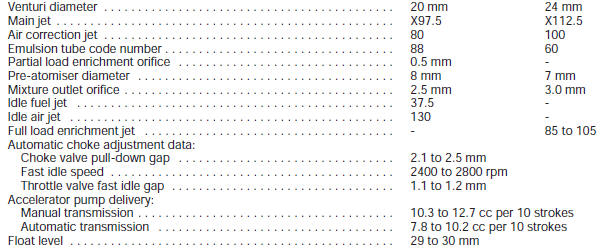

2E3 Carburettor data - 13SC engine

2E3 Carburettor data - 13SC engine

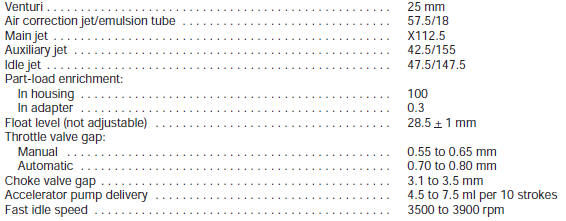

1B1 Carburettor data - 13NB engine

1B1 Carburettor data - 13NB engine

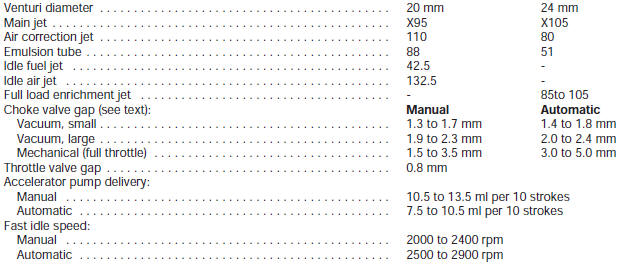

2E3 Carburettor data - 14 NV engine

2E3 Carburettor data - 14 NV engine

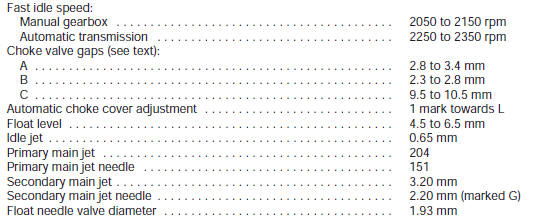

Varajet II Carburettor data - 16SH engine

Varajet II Carburettor data - 16SH engine

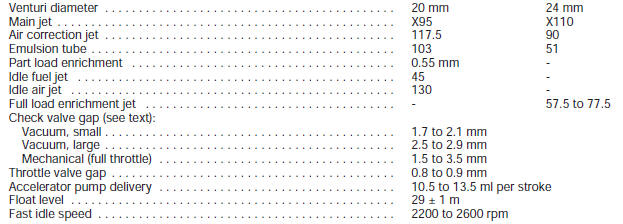

2E3 Carburettor data - 16 SV engine

2E3 Carburettor data - 16 SV engine

Idle speed adjustment data

Idle speed adjustment data

Recommended fuel grade

Recommended fuel grade

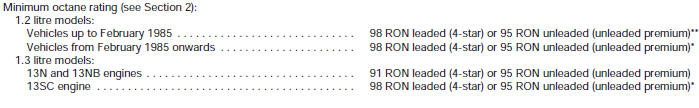

Recommended fuel grade (Continued):

Recommended fuel grade (Continued):

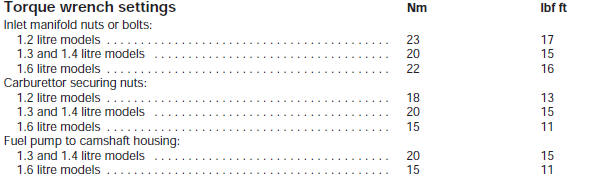

Torque wrench settings

Torque wrench settings

Vents and grilles - removal and refitting
1. The flat grilles at each end of the facia simply unclip. According to equipment level they may also cover a loudspeaker (see illustration). Removing an end grille and speaker 2. The swivel ...

General information
The fuel system consists of a fuel tank mounted under the rear of the car, a mechanical fuel pump and a carburettor. The fuel pump is operated by an eccentric on the camshaft and is mounted on the ...
