Opel Corsa B 1993–2000 Service and Repair Manual: Rear trim panel - removal and refitting

Removal

1.Remove the number plate lamps.

2.Inside the car, free the soft trim from the rear panel to expose the two securing nuts (see illustration). Remove the nuts.

Bodywork and fittings

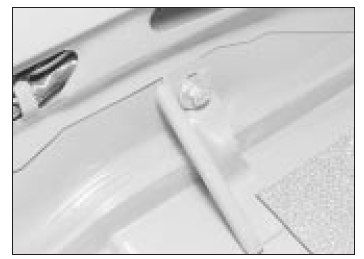

Rear trim panel securing nut

3. Remove the two screws from inside each wheel arch to free the ends of the rear trim panel (see illustration). Withdraw the panel, disconnecting the rear foglight wires as it is withdrawn.

Bodywork and fittings

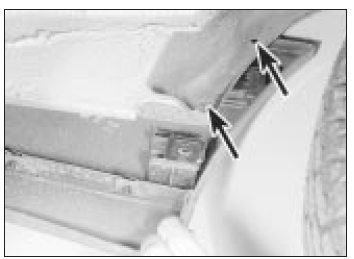

Freeing one end of the rear trim panel - screw holes arrowed

Refitting

4. Refit in the reverse order to removal.
