Opel Corsa B 1993–2000 Service and Repair Manual: Reference

General dimensions and Weights

Dimensions and weights

Note: All figures are approximate, and may vary according to model. Refer to manufacturer's data for exact figures.

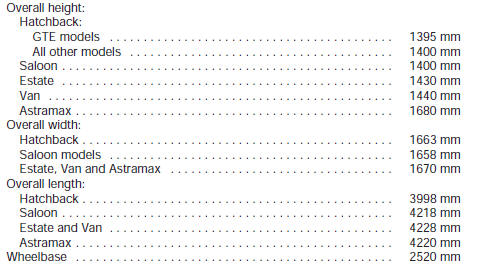

Dimensions

Dimensions

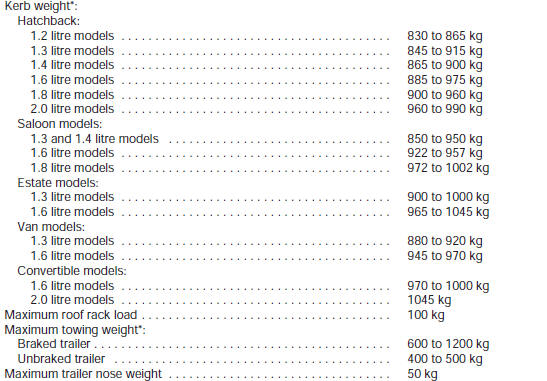

Weights

Weights

*The kerb weights and maximum permissible towing weights given are for general reference. The weights can differ according to model and year, therefore, if specific weight requirements are wanted for a particular model, consult your vehicle handbook or a Vauxhall dealer

Conversion Factors

Length (distance)

Length (distance)

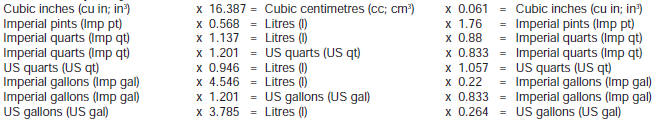

Volume (capacity)

Volume (capacity)

Mass (weight)

Mass (weight)

Force

Force

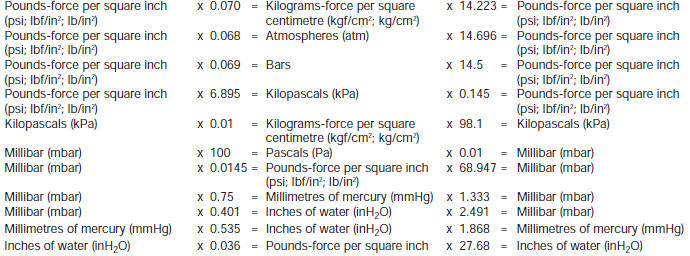

Pressure

Pressure

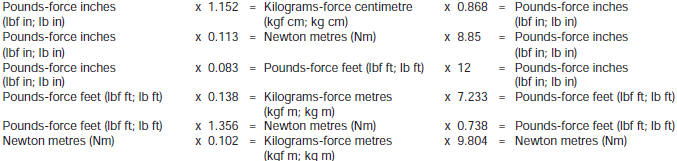

Torque (moment of force)

Torque (moment of force)

Power

Power

Velocity (speed)

Velocity (speed)

Fuel consumption*

Fuel consumption*

Temperature

Temperature

* It is common practice to convert from miles per gallon (mpg) to litres/100 kilometres (l/100km), where mpg x l/100 km = 282

Wiring diagrams
Key to Diagram 1 - all models to 1986 (Not all items are fitted to all models) Key to Diagram 1 - all models to 1986 (Not all items are fitted to all models) (continued) Colour c ...

Buying spare parts
Spare parts are available from many sources; for example, Vauxhall garages, other garages and accessory shops, and motor factors. Our advice regarding spare part sources is as follows. Official ...
