Opel Corsa B 1993–2000 Service and Repair Manual: OHC engines

Specifications

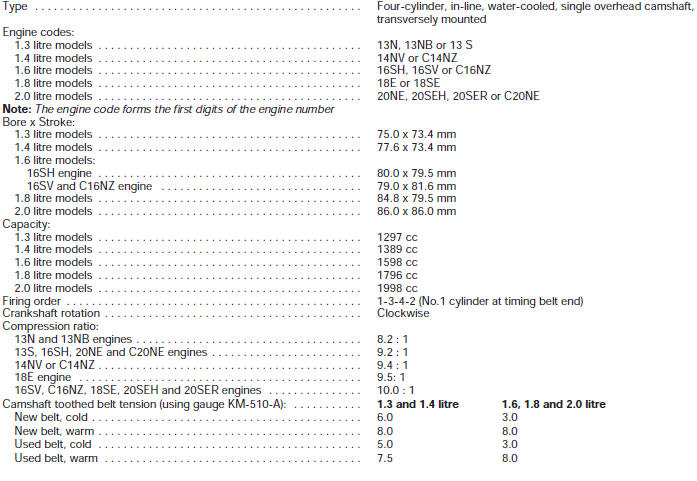

General

General

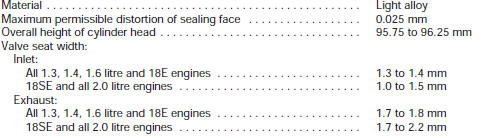

Cylinder head

Cylinder head

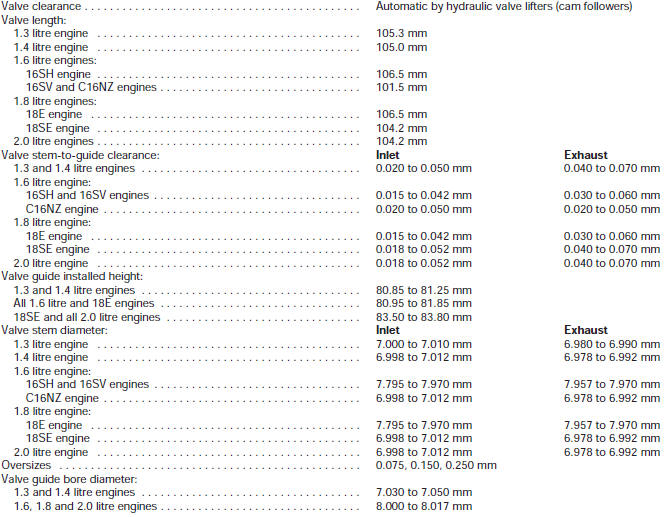

Valves and guides

Valves and guides

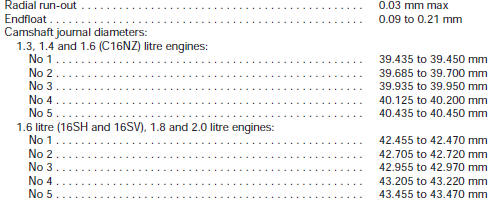

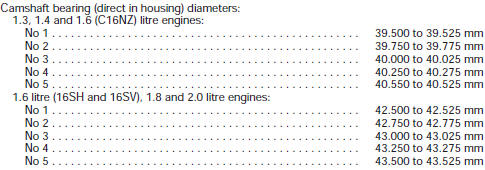

Camshaft

Camshaft

Camshaft

Piston rings

Piston rings

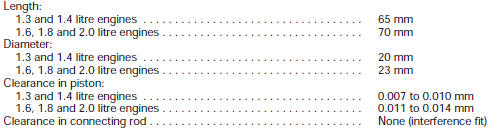

Gudgeon pins

Gudgeon pins

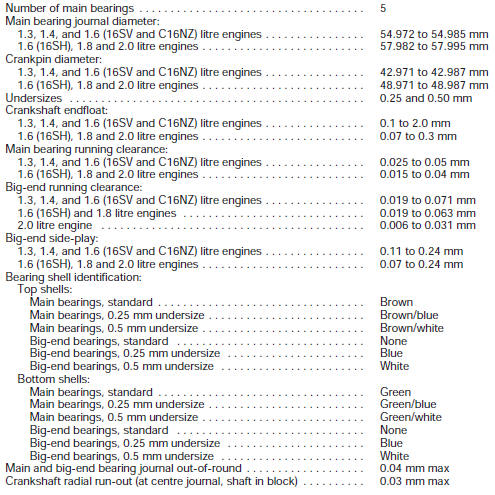

Crankshaft and bearings

Crankshaft and bearings

Flywheel

Flywheel

Lubrication system

Lubrication system

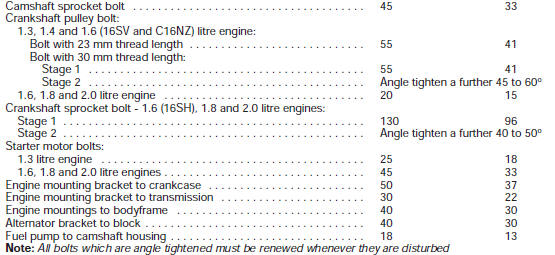

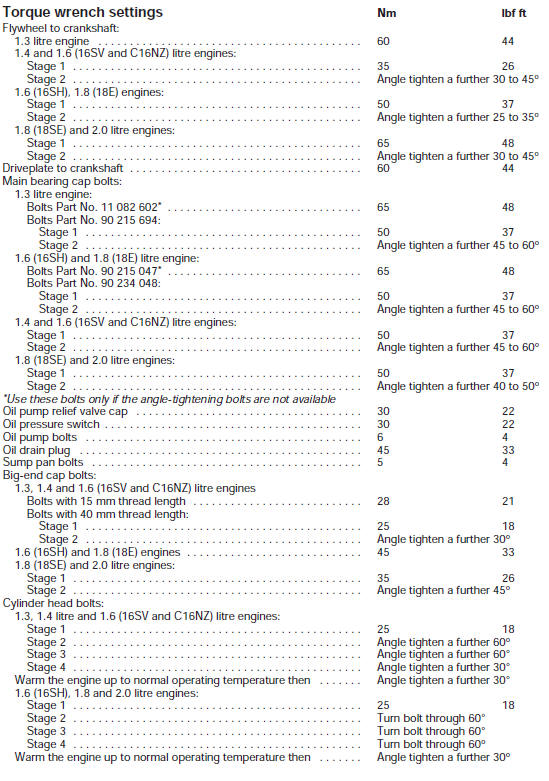

Torque wrench settings

Torque wrench settings

Torque wrench settings

Engine lubrication system - general description
The engine lubrication system is quite conventional. A gear type oil pump draws oil up from the sump, via the suction pipe and strainer, and pumps the oil under pressure in the cartridge oil filte ...

General description
The engine is of four-cylinder, in-line overhead camshaft type, mounted transversely at the front of the car. The crankcase is supported in five shell type main bearings. Thrustwashers are inco ...
