Opel Corsa B 1993–2000 Service and Repair Manual: Wiring diagrams

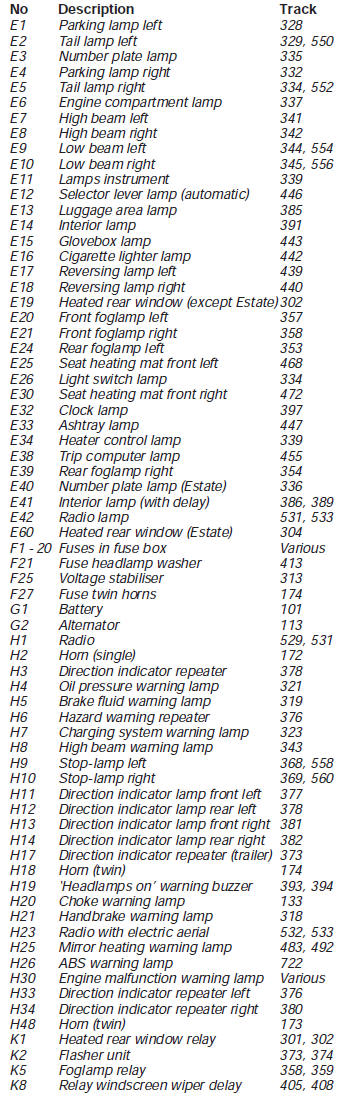

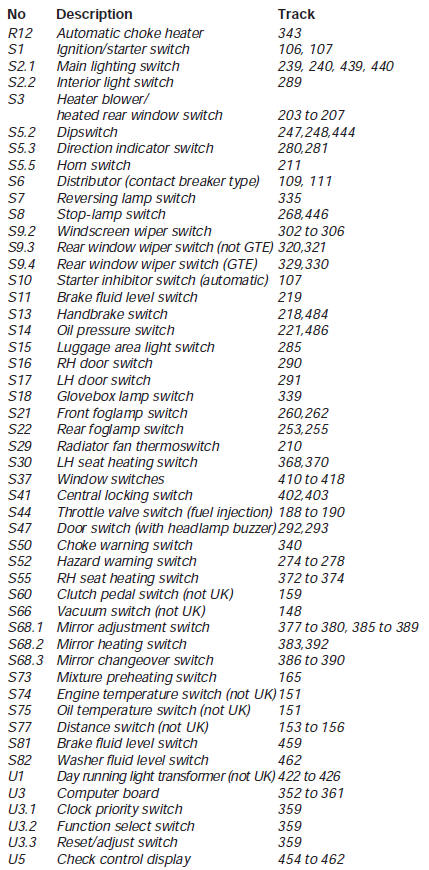

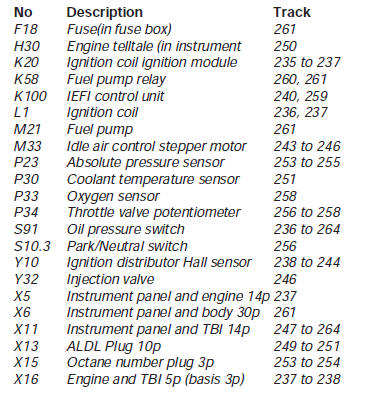

Key to Diagram 1 - all models to 1986 (Not all items are fitted to all models)

Wiring diagrams

Wiring diagrams

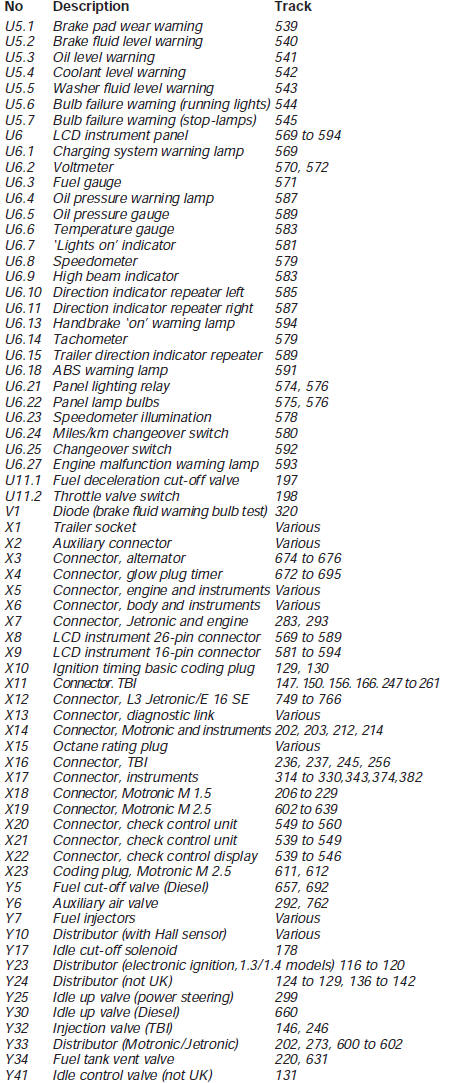

Key to Diagram 1 - all models to 1986 (Not all items are fitted to all models) (continued)

Wiring diagrams

Wiring diagrams

Colour codes

Wiring diagrams

Wiring diagrams

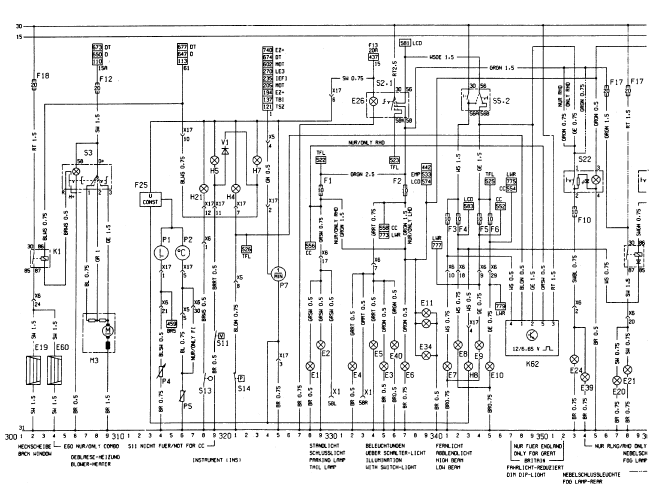

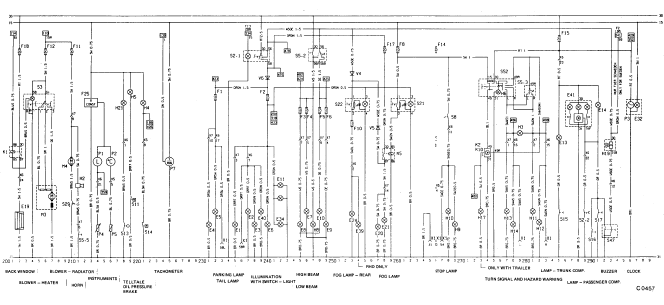

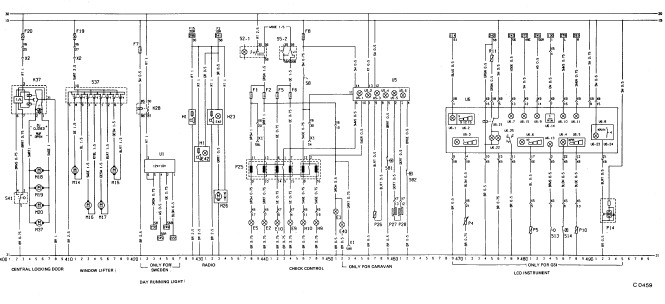

Diagram 1 - all models to 1986

Wiring diagrams
Diagram 1 - all models to 1986 (continued)

Wiring diagrams

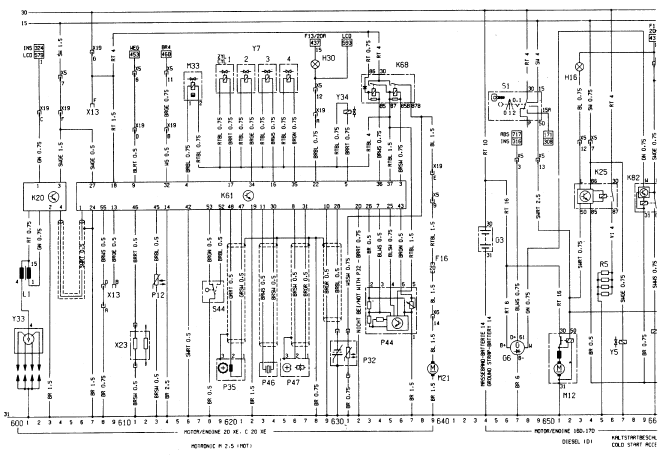

Diagram 1 - all models to 1986 (continued)

Wiring diagrams
Diagram 1 - all models to 1986 (continued)

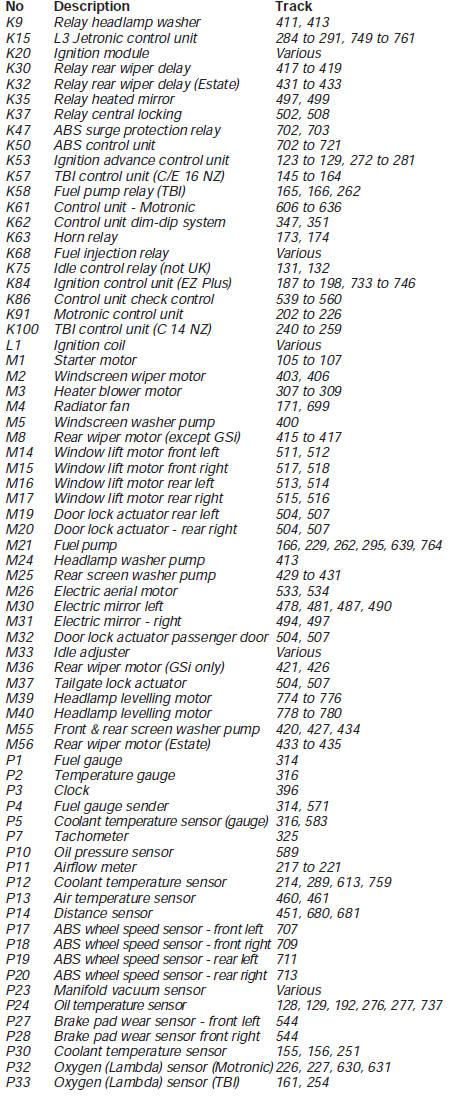

Key to diagram 2 - all 1987 models

Not all items are fitted to all models; not all engines or systems are found in UK models

Wiring diagrams

Wiring diagrams

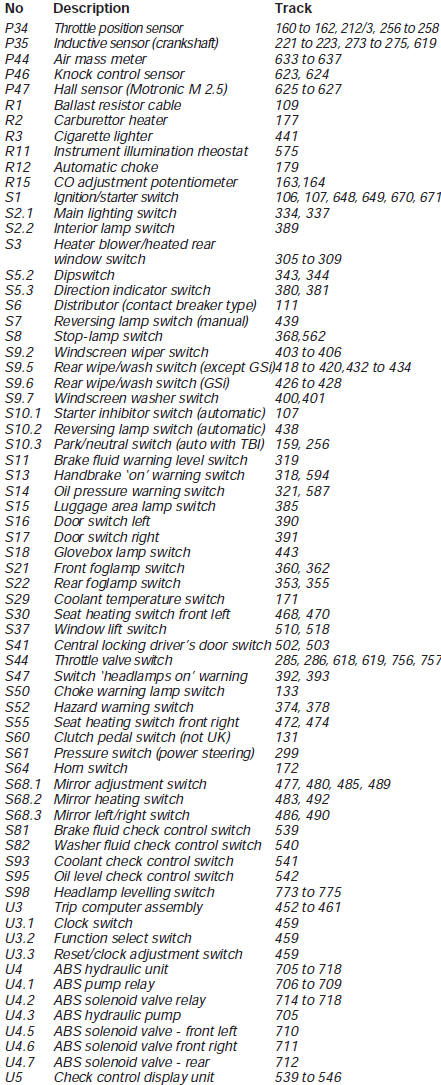

Key to diagram 2 - all 1987 models (continued)

Wiring diagrams

Wiring diagrams

Wiring diagrams

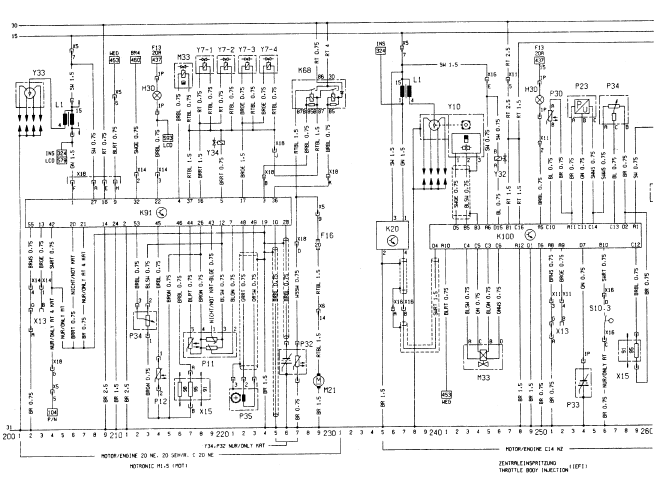

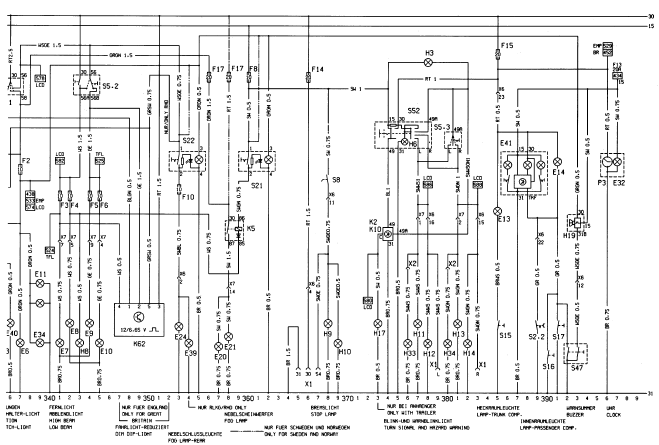

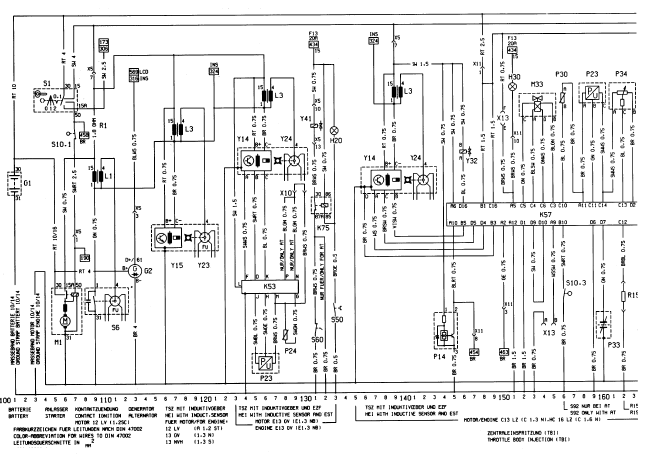

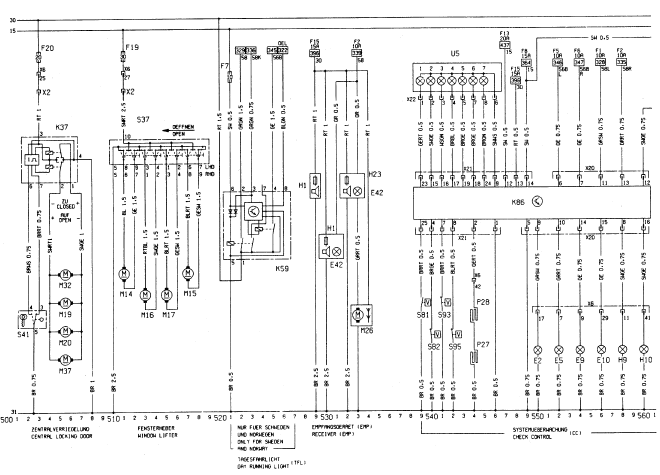

Diagram 2 - 1987 models

Wiring diagrams
Diagram 2 - 1987 models (continued)

Wiring diagrams
Diagram 2 - 1987 models (continued)

Wiring diagrams
Diagram 2 - 1987 models (continued)

Wiring diagrams
Diagram 2 - 1987 models (continued)

Wiring diagrams
Diagram 2 - 1987 models (continued)

Wiring diagrams
Diagram 2 - 1987 models (continued)

Wiring diagrams
Diagram 2 - 1987 models (continued)

Wiring diagrams
Diagram 2 - 1987 models (continued)

Wiring diagrams
Diagram 2 - 1987 models (continued)

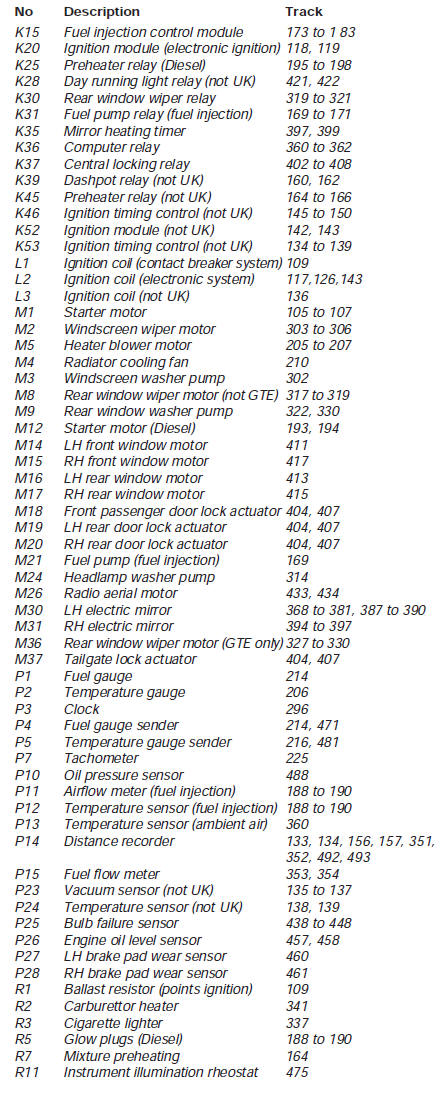

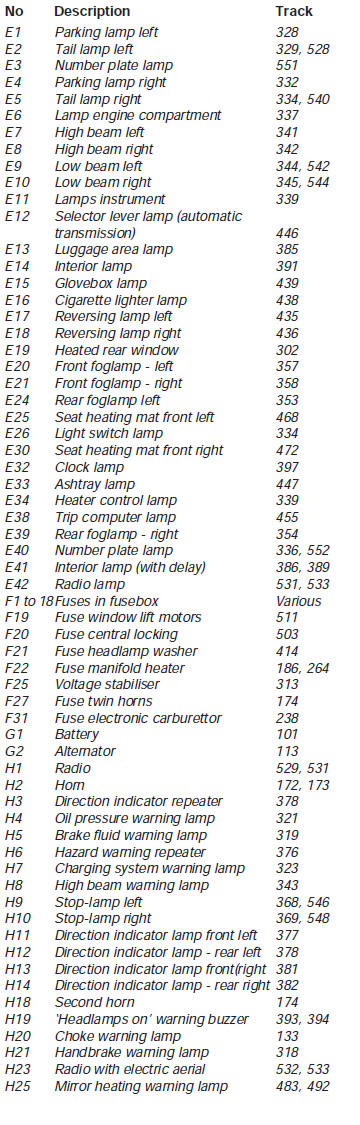

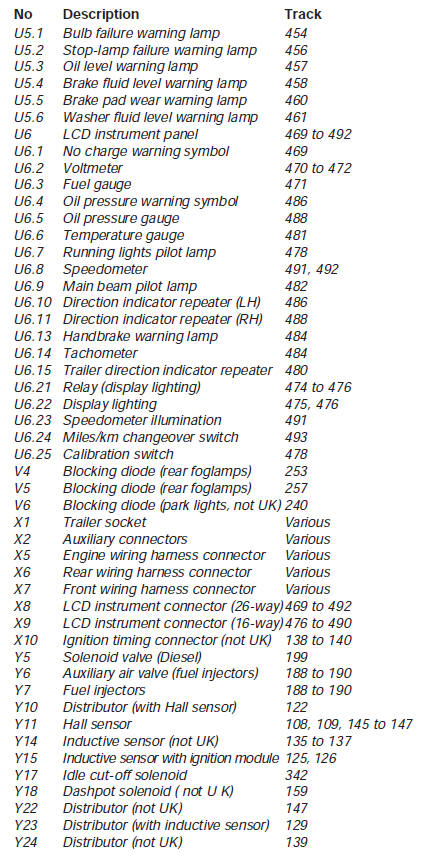

Key to diagram 3 - all models from 1990 on

Not all items are fitted to all models; not all engines or systems are found in UK models

Wiring diagrams

Wiring diagrams

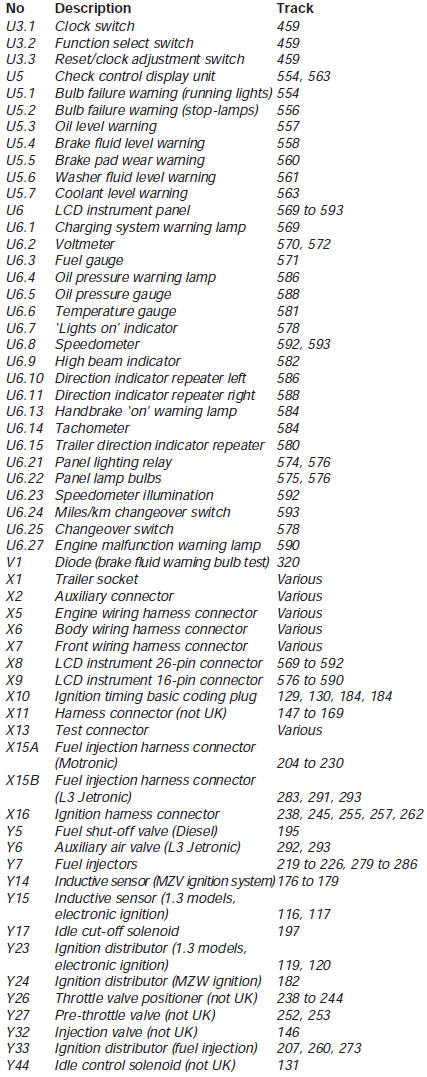

Key to diagram 3 - all models from 1990 on (continued)

Wiring diagrams

Wiring diagrams

Wiring diagrams

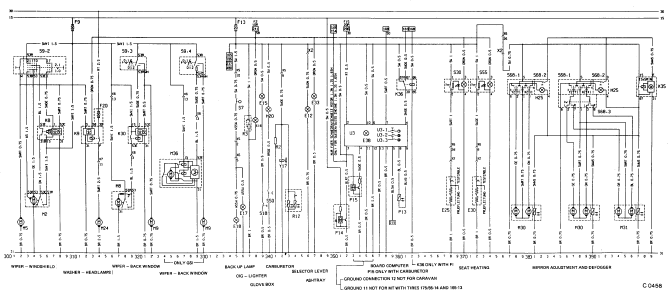

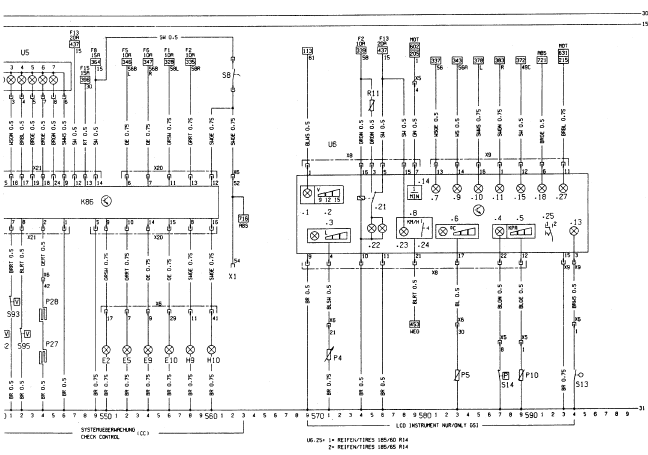

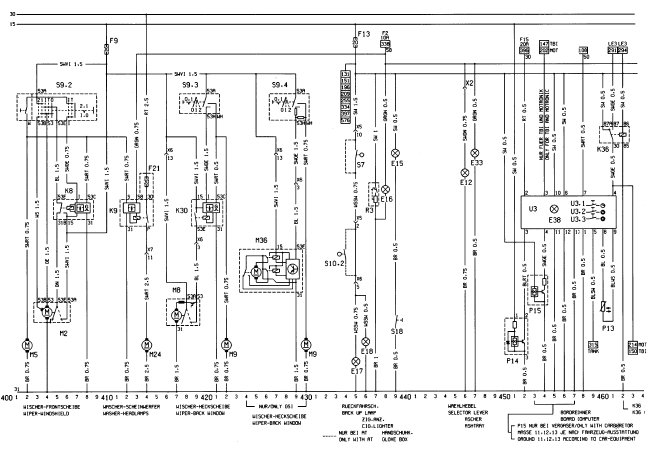

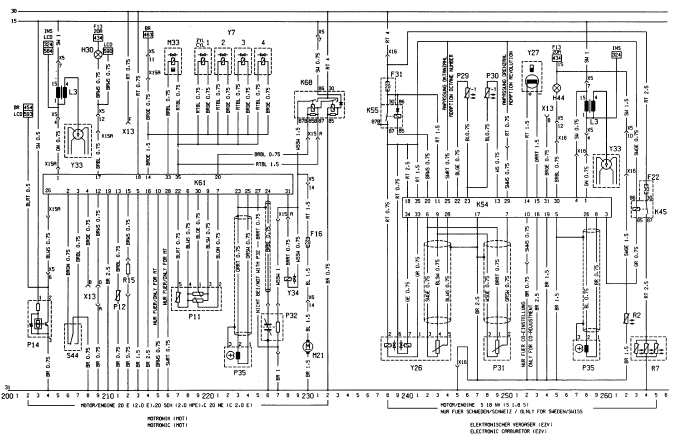

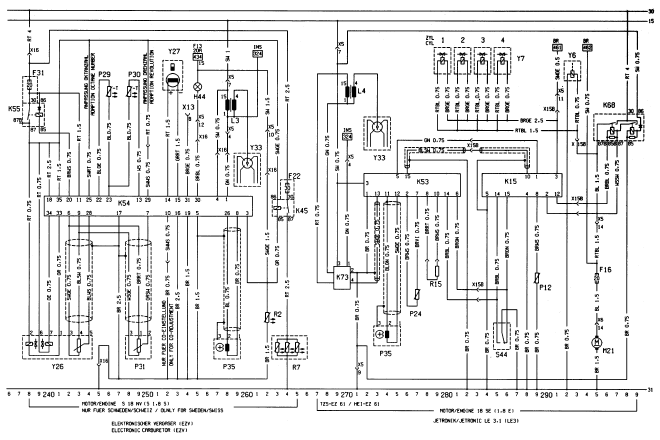

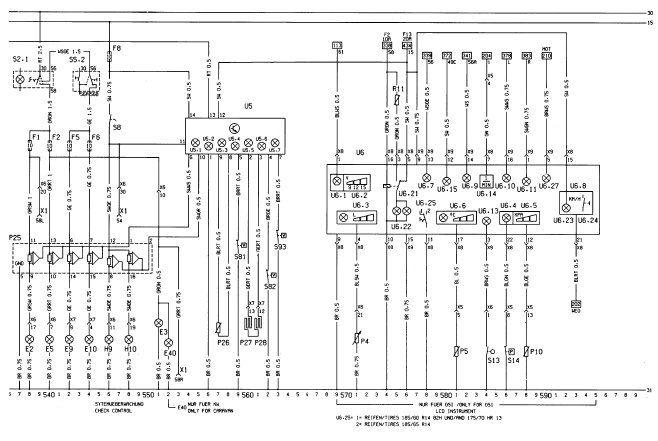

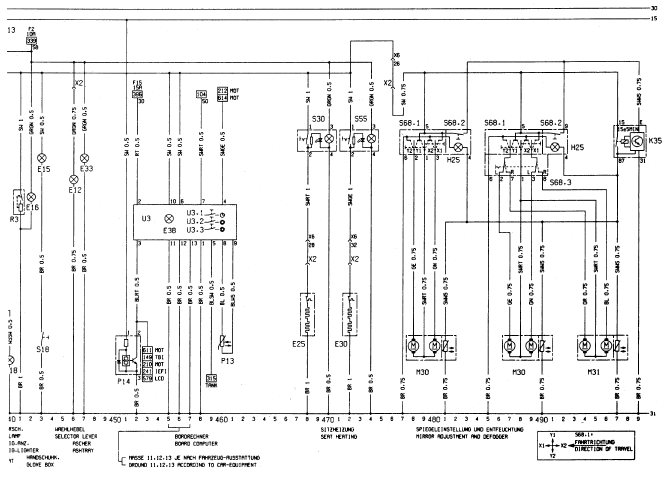

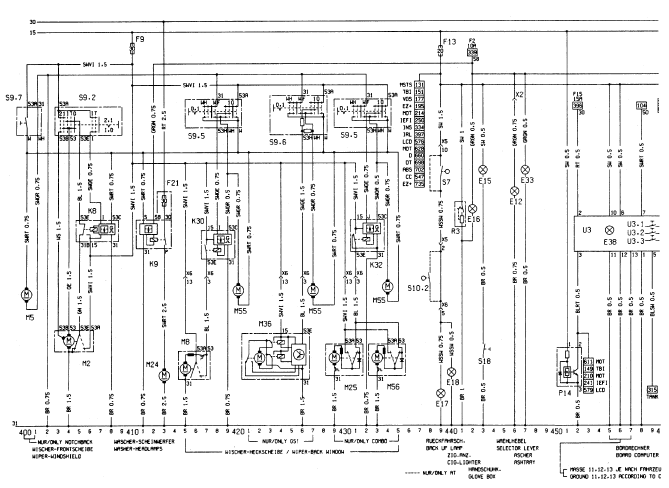

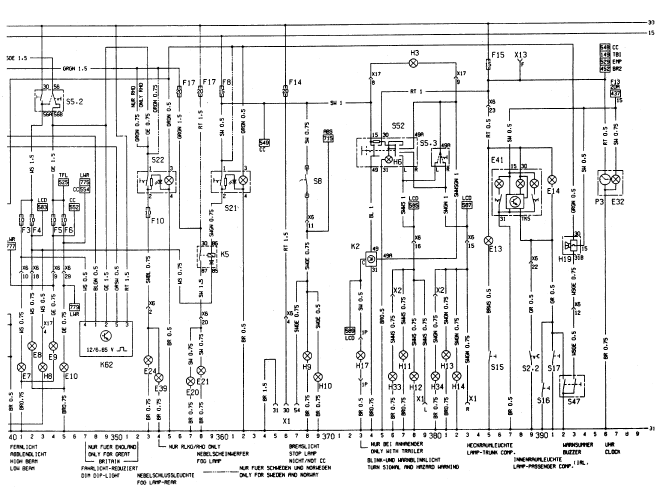

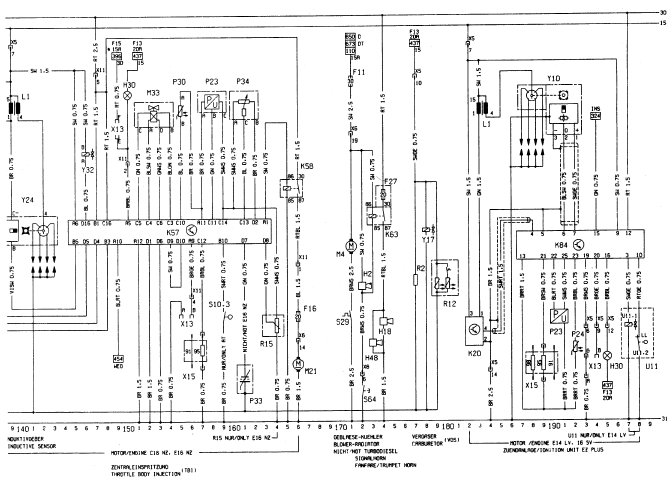

Diagram 3 - all models from 1990 on

Wiring diagrams
Diagram 3 - all models from 1990 on (continued)

Wiring diagrams
Diagram 3 - all models from 1990 on (continued)

Wiring diagrams
Diagram 3 - all models from 1990 on (continued)

Wiring diagrams
Diagram 3 - all models from 1990 on (continued)

Wiring diagrams
Diagram 3 - all models from 1990 on (continued)

Wiring diagrams
Diagram 3 - all models from 1990 on (continued)

Wiring diagrams
Diagram 3 - all models from 1990 on (continued)

Wiring diagrams
Diagram 3 - all models from 1990 on (continued)

Wiring diagrams
Diagram 3 - all models from 1990 on (continued)

Wiring diagrams
Diagram 3 - all models from 1990 on (continued)

Wiring diagrams
Diagram 3 - all models from 1990 on (continued)

Wiring diagrams
Diagram 3 - all models from 1990 on (continued)

Wiring diagrams
Diagram 3 - all models from 1990 on (continued)

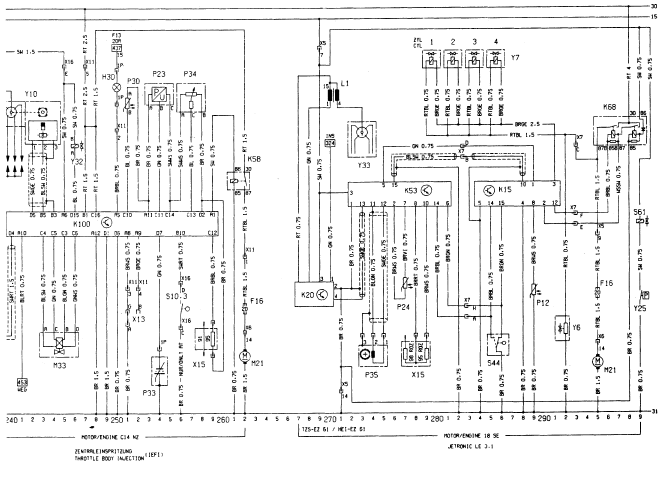

Key to wiring diagram for the MULTEC Central Fuel injection system fitted to later C 14 NZ engines

Wiring diagrams

Wiring diagrams
Wiring diagram for the MULTEC Central Fuel injection system fitted to later C 14 NZ engines
