Opel Corsa Owners Manual: Vehicle dimensions, Capacities, Tyre pressures

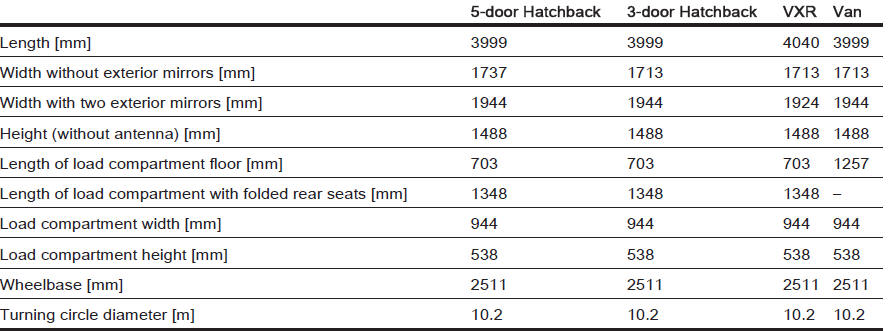

Vehicle dimensions

Vehicle dimensions
Vehicle dimensions

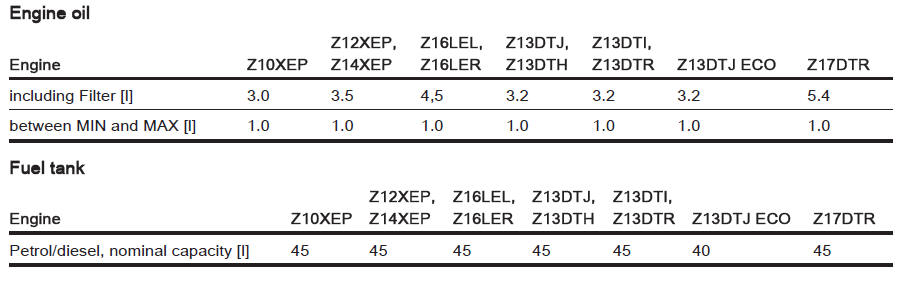

Capacities

Capacities
Capacities

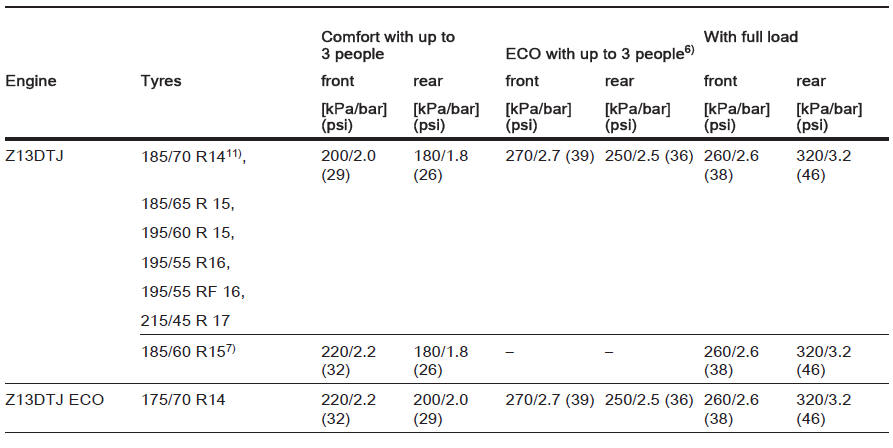

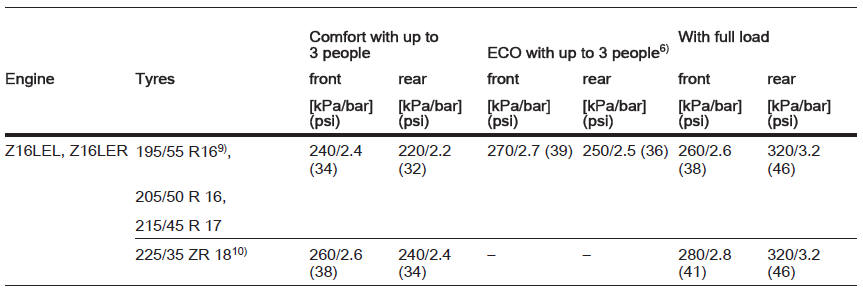

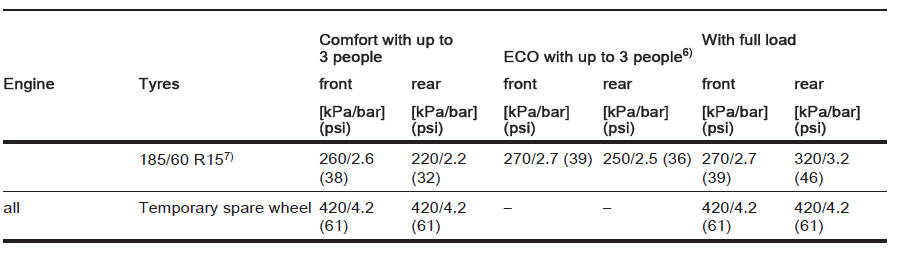

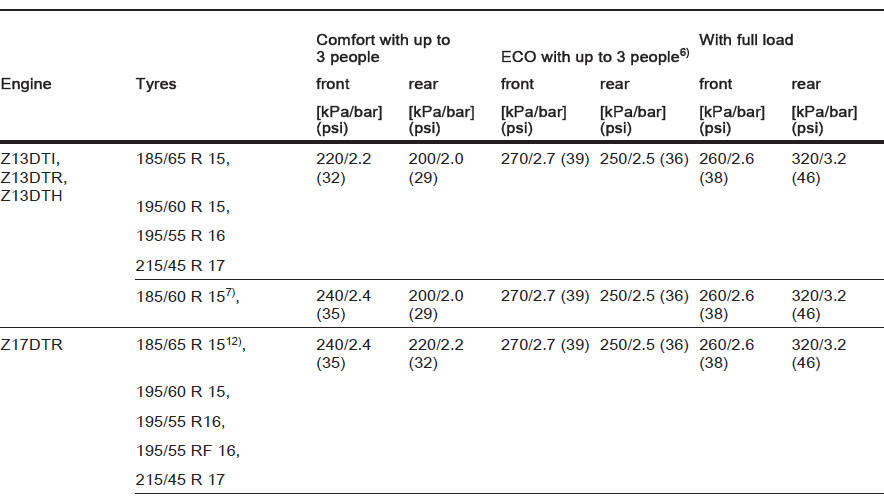

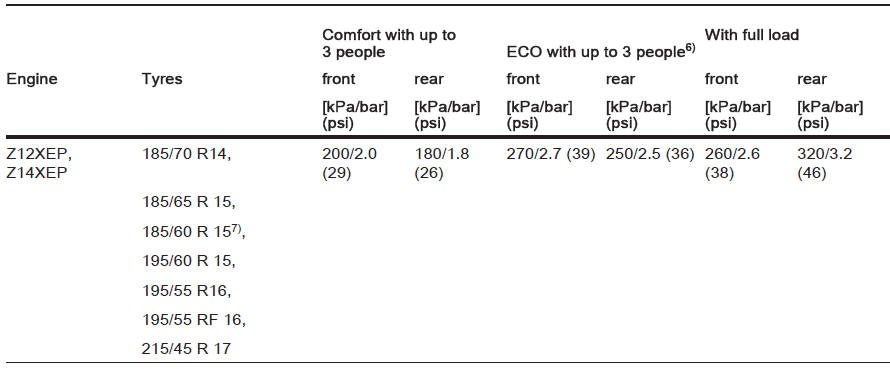

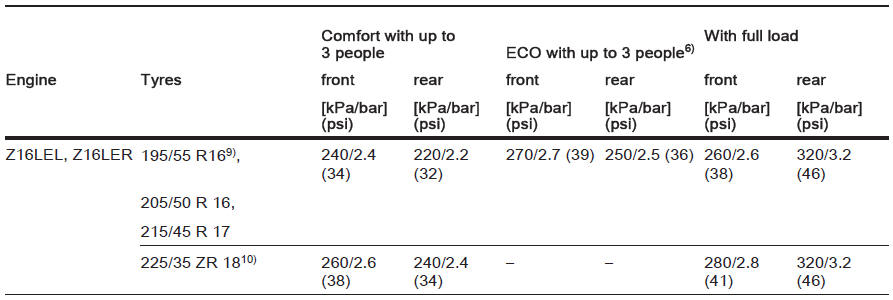

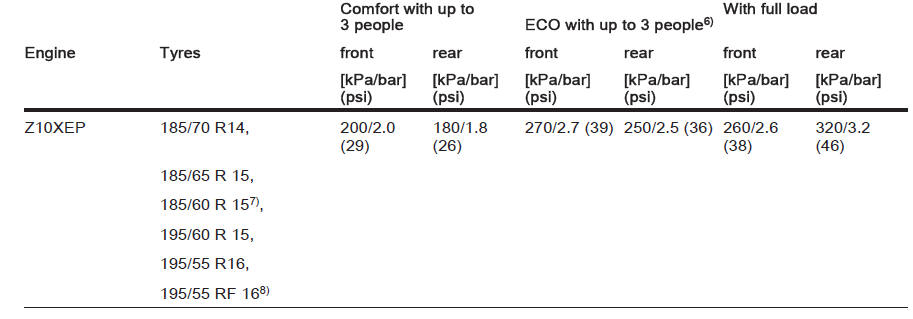

Tyre pressures

Tyre pressures
Tyre pressures

6) To achieve the smallest amount of fuel consumption possible. Not for use with run-flat tyres.

7) Only permitted as winter tyres.

8) Only for vehicles with a specific rear axle application. Contact a workshop.

7) Only permitted as winter tyres.


7) Only permitted as winter tyres.

7) Only permitted as winter tyres.


7) Only permitted as winter tyres.

9) Only permitted as winter tyres. Wheel chains not permitted.


9) Only permitted as winter tyres. Wheel chains not permitted.

10) Not vehicles with Z 16 LEL engine.

11) Only with 14-inch brake.


11) Only with 14-inch brake.

7) Only permitted as winter tyres.

7) Only permitted as winter tyres.


7) Only permitted as winter tyres.

12) Tyre chains not permitted.

7) Only permitted as winter tyres.


7) Only permitted as winter tyres.
